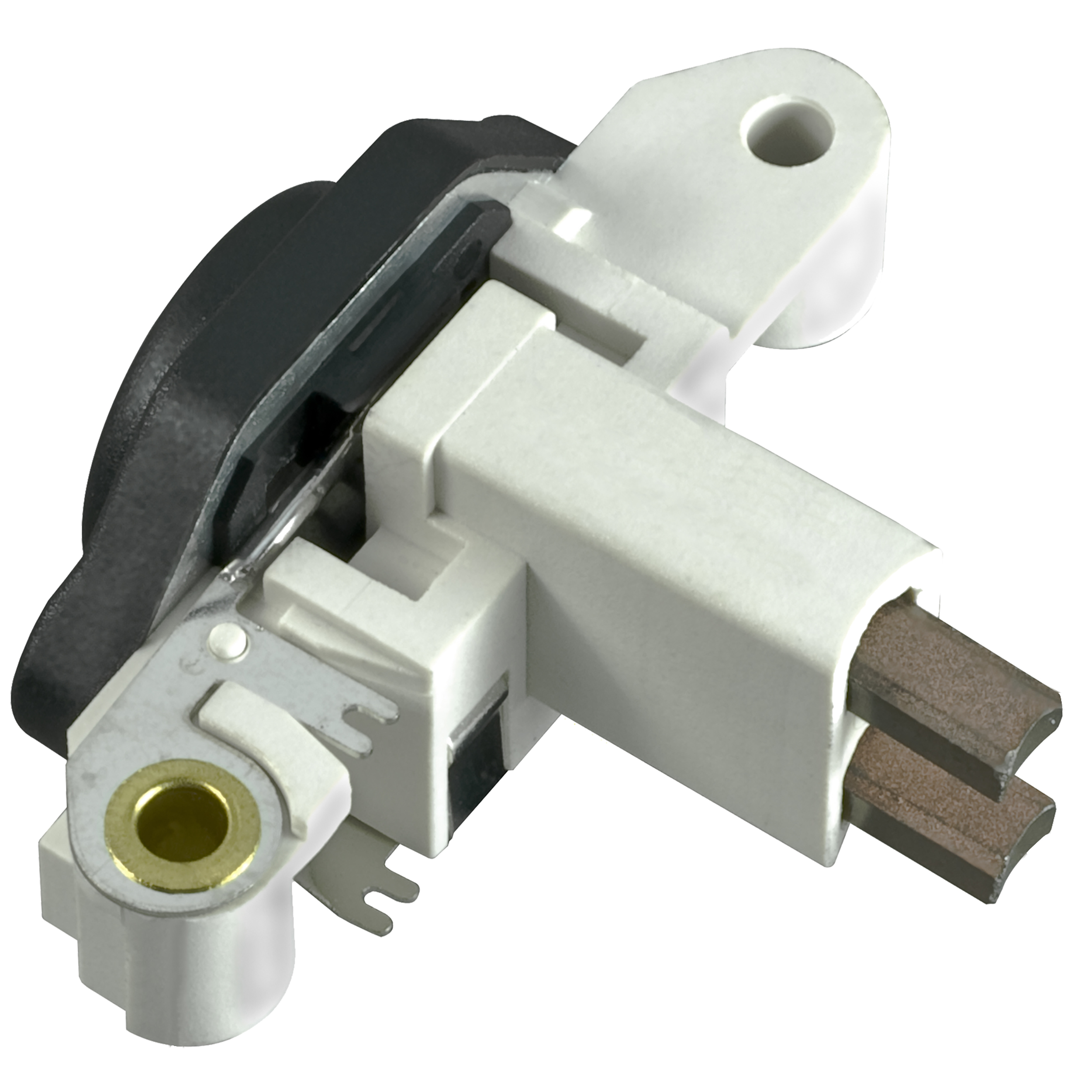

    GAUSS GA223 12V Bosch tipi Konjektör

    Marka/Model: GAUSS GA223

    Ürün Kodu: GA223

    Barkod: 7898252650462

    Fiyatları Görüntülemek İçin Giriş Yapınız
    • Özellikler
    • Uyumlu Araç Listesi
    • Ürün Açıklaması
    • Muadil Ürünler
    Voltaj 12,
    Tip Bosch,
    Terminal Sayısı 3,
    Set Point (V) 14.5,
    İşletme gerilimi (V) 14,
    Çıkış Akımı (A) 120,
    Soket Tipi 3 Fişli Bosh Tipi,
    Spesifikasyonlar Heavy Duty Version, Inactive Lamp,
    Konjektör Devresi Pozitif,
    Alternatör kodu 20501501, 62-15-6657, 77-01-120, 77120, 0120335006, 0120335007, 0120335010, 0120335012, 0120465007, 0120465008, 0120465009, 0120465010, 0120465011, 0120465019, 0120465020, 0120465021, 0120465022, 0120465023, 0120465026, 0120465027, 0120465028, 0120465031, 012046503B, 0120485015, 0120485017, 0120485018, 0120485019, 0120485020, 0120485023, 0120485024, 0120485025, 0120485026, 0120485028, 0120485029, 0120485030, 0120485032, 0120485034, 0120485036, 0120485038, 0120485039, 0120485041, 0120485043, 0120485044, 0120485045, 0120485046, 0120485047, 0120485048, 012048504J, 0120505005, 0123100001, 0123100002, 0123105001, 0123110004, 0123110005, 0123110006, 0123110008, 0123114005, 0123120001, 0123120005, 0123212001, 0123214002, 0123310001, 0123310002, 0123310003, 0123310004, 0123310006, 0123310007, 0123310008, 0123310009, 0123310010, 0123310012, 0123310014, 0123310015, 0123310016, 0123310018, 0123310019, 0123310020, 0123310022, 0123310024, 0123310025, 0123310026, 0123310027, 0123310028, 0123310029, 0123310031, 0123310032, 0123310033, 0123310034, 0123310035, 0123310037, 0123310038, 0123310039, 0123310040, 0123310041, 0123310042, 0123310043, 0123310044, 0123310046, 0123310047, 0123310049, 0123310050, 0123310051, 0123310053, 0123315001, 0123315002, 0123315003, 0123315004, 0123315006, 0123315500, 0123315501, 0123315502, 0123315503, 0123320001, 0123320002, 0123320003, 0123320004, 0123320005, 0123320006, 0123320007, 0123320008, 0123320009, 0123320012, 0123320014, 0123320016, 0123320017, 0123320018, 0123320019, 0123320020, 0123320021, 0123320022, 0123320023, 0123320024, 0123320025, 0123320026, 0123320027, 0123320028, 0123320030, 0123320031, 0123320032, 0123320033, 0123320034, 0123320036, 0123320037, 0123320038, 0123320039, 0123320048, 0123320052, 0123320053, 0123320054, 0123320055, 0123320057, 0123320059, 0123320063, 0123320065, 0123320066, 0123325007, 0123335001, 0123335012, 0123340001, 0123340002, 0123340003, 0123340005, 0123345004, 0123500007, 0123500008, 0123505001, 0123505002, 0123505003, 0123505004, 0123505005, 0123505007, 0123505008, 0123505009, 0123505010, 0123505017, 0123510001, 0123510003, 0123510005, 0123510006, 0123510007, 0123510013, 0123510014, 0123510015, 0123510020, 0123510026, 0123510029, 0123510030, 0123510031, 0123510032, 0123510033, 0123510034, 0123510037, 0123510042, 0123510043, 0123510045, 0123510048, 0123510052, 0123510053, 0123510054, 0123510056, 0123510060, 0123510061, 0123510062, 0123510063, 0123510064, 0123510065, 0123510070, 0123510071, 0123510088, 0123510089, 0123510091, 0123510092, 0123510093, 0123510094, 0123510096, 0123510099, 0123510106, 0123510109, 0123512500, 0123512501, 0123515013, 0123515016, 0123515031, 0123520001, 0123520002, 0123520005, 0123520014, 0123525001, 0123540001, 0132315500, 0132315502, 0132315503, 0986036690, 0986037110, 0986038030, 0986038060, 0986038070, 0986038180, 0986038370, 0986038380, 0986038390, 0986038600, 0986038610, 0986038730, 0986038740, 1031896, 5030656, 7081782, 7203201, 7355509, 7361230, 7361233, 7387707, 7387709, 9120485048, 9123100002, 9123110005, 9123120001, 9123310020, 9123310029, 9123320007, 9123320016, 9123369028, 9123690001, 92AB10300GC, 93BB10300AE, 93BB10300AG, 94AB10300BA, 95AB10300DB, 95AB10300DC, 95GB10300DA, 95GB10300EB, 95GB10300KA, 95VW10300AA, 95VW10300AAA, 95VW10300AB, 95VW10300AC, 95VW10300EA, 95VW10300EB, 95VW10300EC, 95VW10300KA, 95VW10300KB, 95VW10300NA, 95VW10300PA, 95VW10300RA, 95VW10300SA, 98VW10300BA, A0006, A0019, A0033, A0041, A0078, A0079, A0096, A0113, A0117, A0119, A0128, A0129, A0148, A0152, A0153, A0156, A0163, A0174, A0186, A0273, A0319, A0386, B120310050, B120310087, B120411182, B120411203, B120411204, B120411324, B120411528, B120510214, B120510330, B120510614, F010LD0202, F010LD0205, F010LD0206, 0123310023, 0123310048, 0123310054, 0123310055, 0123320050, 0123320067, 0123325005, 0123325006, 0123505011, 0123505012, 0123505013, 0123510046, 0123510047, 0123515014, 0123515017, 0123515018, 0123515020, 0123515021, 1018818, 1031898, 1076005, 95VW10300ABA, 97VW10300EA, A0118, A0197, 0-120-465-007, 0-120-465-008, 0-120-465-010, 0-120-465-020, 0-120-465-021, 0-120-465-028, 0-120-465-031, 0-120-485-015, 0-120-485-018, 0-120-485-023, 0-120-485-025, 0-120-485-026, 0-120-485-034, 0-120-485-036, 0-120-485-038, 0-120-485-039, 0-120-485-043, 0-120-485-044, 0-120-485-048, 0-120-505-005, 0-123-120-001, 0-123-214-002, 0-123-310-001, 0-123-310-002, 0-123-315-001, 0-123-315-002, 0-123-315-003, 0-123-315-006, 0-123-340-002, 0-123-340-003, 0-123-340-005, 0-123-505-010, 0-123-510-001, 0-123-510-062, 0-123-325-005, 0-123-325-006, 0-123-505-011, 0-123-505-012, 0-123-505-013, 0-123-510-046, 0-123-510-047, 0-123-515-014, 0-123-515-017, 0-123-515-018, 0-123-515-020, 0-123-515-021,
    Setpoint 14,6,
    AS-PL Kodu ARE0006, ARE0011,
    Audi Kodu 021903 803B, 028 903 803B, 028 903 803C, 78 903 803, 028 903 803D,
    BMW Kodu 12311247892, 12311730604, 12311739365, 12311747920, 12317739365, 1247892, 1739365,
    BV PSH Kodu 052.000.073,
    Bosch Kodu 1197311223, 1197311500, 1197311530, 1197311548, 1197311531, 1197311235, 1 197 311 548, 1197311223, 1 197 311 531, 1-127-311-527, 1-197-311-175, 1-197-311-212, 1-197-311-214, 1-197-311-220, 1-197-311-221, 1-197-311-222, 1-197-311-223, 1-197-311-224, 1-197-311-225, 1-197-311-227, 1-197-311-228, 1-197-311-229, 1-197-311-232, 1-197-311-233, 1-197-311-235, 1-197-311-236, 1-197-311-237, 1-197-311-238, 1-197-311-241, 1-197-311-277, 1-197-311-519, 1-197-311-521, 1-197-311-522, 1-197-311-527, 1-197-311-528, 1-197-311-540, 1-197-311-548, 1-197-311-500, 1-197-311-523, 1-197-311-530, 1-197-311-531, 1127011175, 1127311175, 1197311175, 1197311212, 1197311214, 1197311220, 1197311221, 1197311224, 1197311225, 1197311227, 1197311228, 1197311229, 1197311233, 1197311236, 1197311237, 1197311238, 1197311241, 1197311277, 1197311519, 1197311522, 1197311528, 1197311540, 1197311552, 1197311523,
    CASCO Kodu CRE10105, CRE10111,
    Cargo Kodu 134687 / 137183, 134687, 137183, 135443, 137151, 135545, 333262, 137117,
    Delco Kodu 90487255, 93253788,
    ERA Kodu 215284, 215286, 215294, 215287,
    Fiat Kodu 2174825, 9943986, 9944659, 9944827, 9944857, 9946659, 9947103, 9947418, 9950561,
    GHIBAUDI Kodu RTR3246, RTR3269,
    Garanti 2 Yıl,
    HERTH+BUSS ELPARTS Kodu 35000151,
    HUECO Kodu 130552, 130557,
    Hitachi Kodu 2500552, 130552,
    IKA Kodu 1.6032.1,
    IVECO Kodu 42531176,
    KHD Kodu 1180855,
    Krauf Kodu ARB0385, ARB0388,
    MERCEDES-BENZ Kodu 215-485-02, 0021548502, 0031540206, 0331540706, A0021548502, A0031540206, A0331540706,
    MOBILETRON Kodu VR-B222, VR-B200H, VR-B222,
    Magneti Marelli Kodu RT510120, 940038012,
    Nissan Kodu 23215-72J00,
    Peugeot Kodu 571697, 576196, 576197,
    PowerMax Kodu 81113388, 81116600,
    REGITAR Kodu VRB200H, VRB222, VRB200H,
    SCANIA Kodu 4737151,
    SEAT Kodu 021903 803B, 028 903 803B, 028 903 803C, 78 903 803, 028 903 803D,
    SKODA Kodu 021903 803B, 028 903 803B, 028 903 803C, 78 903 803, 028 903 803D,
    TRANSPO Kodu IB385, IB388, 35-9120,
    Unipoint Kodu YR-V02, YR-V18,
    VOLVO Kodu 9130110, 9130518, 91305185,
    VW Kodu 021903 803B, 028 903 803B, 028 903 803C, 78 903 803, 028 903 803D, 021903803B, 028903803B, 028903803C, 030905241A, 054903803, 054903803A, 078903803, 028903803D, 028903803DV, 028903803DX,
    Valeo Kodu 572587,
    Ağırlık [kg] 0.0446
    Kutu Ebatı (GxYxD) 7.00cm x 6.00cm x 7.00cm

    Değiştirir: Bosch: 1197311223, 1197311500, 1197311530, 1197311548, 1197311531, 1197311235; Magneti Marelli: RT510120 Yetkili:VRB200H / VRB222, Kargo:134687 / 137183, WAI/Transpo:IB385 / IB388, AS Polonya:ARE0006 / ARE0011

    Uygulama: VW: Klimalı Gol e Parati 1.0Mi e 1.0Mi 16V, Gol, Parati e Saveiro 1.6Mi, 1.8Mi, 2.0Mi e 2.0Mi 16V klima, Golf GL 2.0 e GLX, Golf III 1.8 , Klimalı Golf III 1.8 Passat e Variant 1.8ie 2.0i, Polo Classic 1.6Mi, 1.8Mi (AP), Van 1.6Mi klimasız, Santana e Quantum 1.8Mi, 2.0Mi klimalı, Saveiro 1.6 Mi, 1.8Mi (AP) klima ile; AGRALE: Mikro Otobüs Marcopolo Volare; KOLTUK: Cordoba Ibiza 1.8; IVECO: Günlük 98>99 / 96>99

    Alternatör kodu: VW: 037903025C, BOSCH: 0123310019, 0123310020, 0123315500, 0123320001, 0123320002, 0123320007, 0123320026, 0123320030, 0123510001, 0123515016, 0123320034

    Doğrultucu montajı: GA1560 / GA1667 / GA1734 / GA1852

    Alan: Bir Devre

    Akım: 120A

    Çıkış voltajı: 14V

    14V / 120A, 'A' Circuit
    0 123 310 019 (BOSCH) 0 123 310 020 (BOSCH) 0 123 315 500 (BOSCH) 0 123 320 001 (BOSCH) 0 123 320 002 (BOSCH) 0 123 320 007 (BOSCH) 0 123 320 026 (BOSCH) 0 123 320 030 (BOSCH) 0 123 510 001 (BOSCH) 0 123 515 016 (BOSCH) 1 197 311 223 (BOSCH) 1 197 311 500 (BOSCH) 1 197 311 530 (BOSCH) 1 197 311 531 (BOSCH) 1 197 311 548 (BOSCH) 134687 (CARGO) 137183 (CARGO) ARE0006 (AS-POLAND) ARE0011 (AS-POLAND) IB385 (WAI/TRANSPO) IB388 (WAI/TRANSPO) RT510120 (MAGNETI MARELLI) VRB200H (REGITAR) VRB222 (REGITAR)
    VW: Polo Classic 1.6 Mi (AP) VW: Polo Classic 1.8 Mi (AP) AGRALE: Volare (Micro ônibus Marcopolo) SEAT: Cordoba 1.8 SEAT: Ibiza 1.8 IVECO: Daily 1/1998 > 1/1999 IVECO: Daily 1/1996 > 1/1999 VW: Saveiro 1.6Mi with A/C VW: Variant 1.8i 1.8 with A/C VW: Variant 1.8i 1.8i with A/C VW: Golf III 2.0i with A/C VW: Passat 2.0i with A/C VW: Variant 1.8i 2.0i with A/C VW: Passat 1.8 with A/C VW: Golf III 1.8i with A/C VW: Passat 1.8i with A/C VW: Saveiro 1.8 Mi with A/C VW: Santana Quantum 2.0 MI with A/C VW: Golf III 1.8 with A/C VW: Saveiro 1.6 MI with A/C VW: Santana Quantum 1.8 Mi with A/C VW: Saveiro 2.0Mi with A/C VW: Gol 1.8Mi with A/C VW: Santana 1.8 Mi with A/C VW: Parati 2.0Mi with A/C VW: Santana 2.0 MI with A/C VW: Saveiro 1.8Mi with A/C VW: Gol 2.0Mi with A/C VW: Gol 2.0Mi 16V with A/C VW: Saveiro 2.0Mi 16V with A/C VW: Parati 1.6Mi with A/C VW: Gol 1.6Mi with A/C VW: Golf GLX 2.0 with A/C VW: Parati 1.8Mi with A/C VW: Golf GL 2.0 with A/C VW: Gol 1.0Mi 16V without A/C VW: Gol 1.0Mi without A/C VW: Parati 1.0Mi without A/C VW: Van 1.6 MI without A/C VW: Parati 1.0Mi 16V without A/C VW: Parati 2.0Mi 16V with A/C
